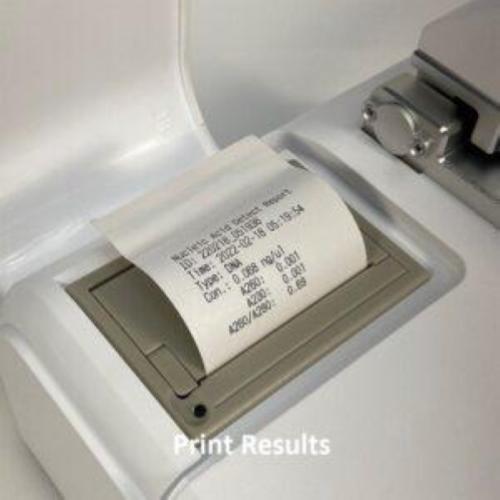

SmartDrop L Nano spectrophotometers DNA/RNA/protein quantification and purity, range 260, 280, 600 nm, display 7" touch screen, sample volume 1.0 – 2.0 uL, cuvette slot OD600, Printer, USB data export

SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA and Proteins

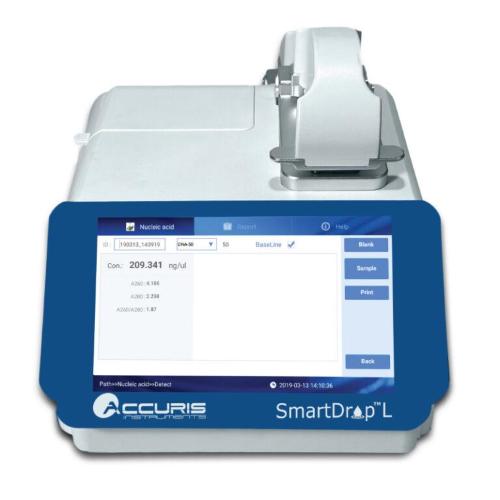

Model : SmartDrop L
Ideal for basic DNA/RNA/protein quantification and purity
Affordable LED and silicon detector technology
Fixed 0.5mm path length, detect up to 2500ng/µl of dsDNA

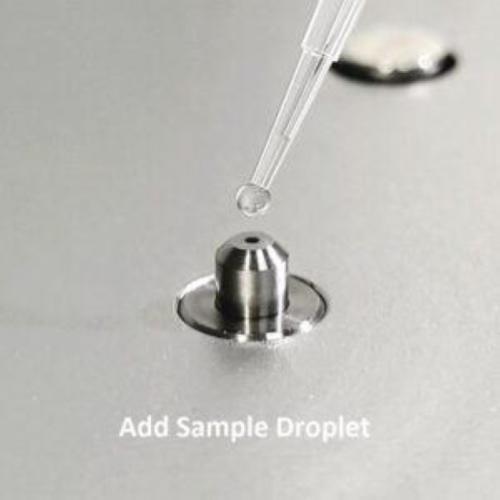

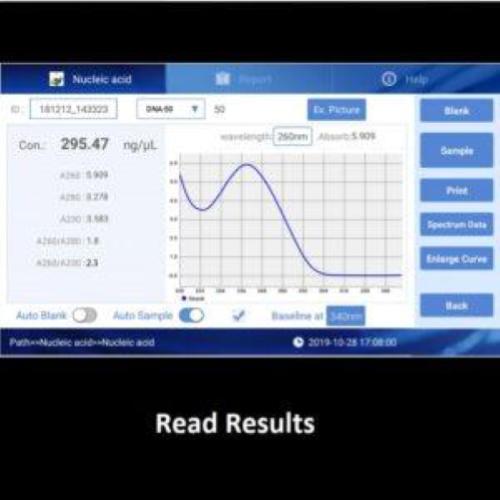

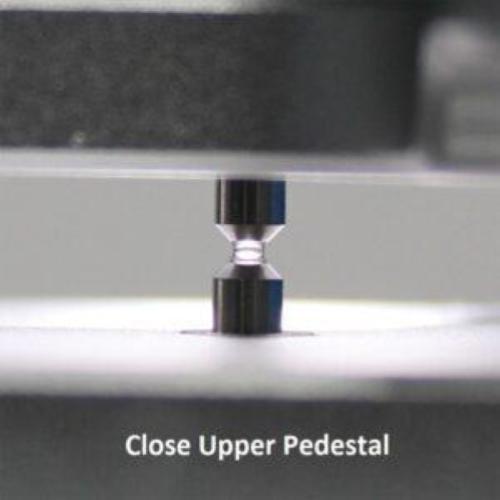

SmartDrop L is the affordable choice for laboratories needing to determine nucleic acid and protein concentrations and purity of samples. The LED light source and silicon photocell sensor provide readings at 260 and 280nm. Samples from 1.0 to 2.0µl are loaded directly on the pedestal. Results are provided in about 5 seconds. The software automatically
calculates and displays 260/280 ratios.
Display 7" touch screen
Minimum sample size 1.0µl – 2.0µl
Path length 0.5mm
Light source UV LED
DetectorUV Silicon Photocell
Wavelength 260, 280, & 600 nm
Absorbance range 0.2 – 50 A (10mm equivalent)
Absorbance precision 0.005 A
Lower limit of detection dsDNA: 10ng/µl; BSA: 0.5 mg/ml
Upper limit of detection dsDNA: 2,500ng/µl; BSA: 75.0 mg/ml
Detection time < 6 seconds
Communication ports USB for data export
Voltage input DC 24V, 2A
Power 25W
Dimensions (WxDxH) 20.8 x 28.0 x 18.6cm
Weight3.6 kg

Cuvette OD600 detection
Absorbance range0.0 – 4.0 A
Absorbance stability[0,3) = 0.5%, [3,4) = 2%
Absorbance repeatibility[0,3) = 0.5%, [3,4) = 2%
Absorbance precision[0,2) = 0.005 A, [2,3) = 1%, [3,4) = 2%
