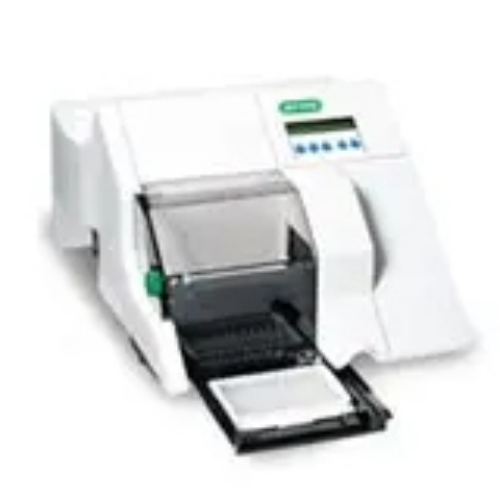

PW40 - Microplate Washer

Overview
The PW40 Microplate Washer is compact and programmable, with an 8-channel washing comb, a vacuum pump, and built-in dispensing pumps. The PW40 Washer is easy to program and offers a wide choice of washing methods, which can be combined according to the user's requirements. A logical sequence of questions enables the operator to program washes easily.
Features and Benefits
Compatible with U-, V-, or flat-bottom wells
Aspiration and dispensing heads can be adjusted both vertically and horizontally over the microplate wells to within 0.1 mm
Cover protects the immediate environment from aerosols
Autoclavable microplate support is easily removed for decontamination
Preprogrammed Bio-Rad assays
The PW 40 Microplate Washer includes an 8-way manifold connected to a vaccuum pump and a built-in dispensing pump (optional manifolds are available separately). A wash bottle, a rinse bottle and a waste bottle are included (2 L each). Liquid level sensors and a vacuum sensor ensure day-to-day microplate washing cycle safety.
Specifiche
Dimensions (W x L x H)
368 x 530 x 243 mm
Weight
10.1 kg
Input voltage and frequency
110-120 V or 220-240 V / 50-60Hz
Output
100 VA max.
Operating Conditions
15-30°C/15-85%RH
Performance :
Precision : +5% RSD (0.9% NaCl W/v)
Wash volume: 50-3,000 µl per well
Residual well volume: < 2 µl per well
Storage capacity
Up to 75 kits
Soak time
In plate mode: 0-60 min per 1 sec interval
In strip mode: 0-16 min per 1 sec interval
