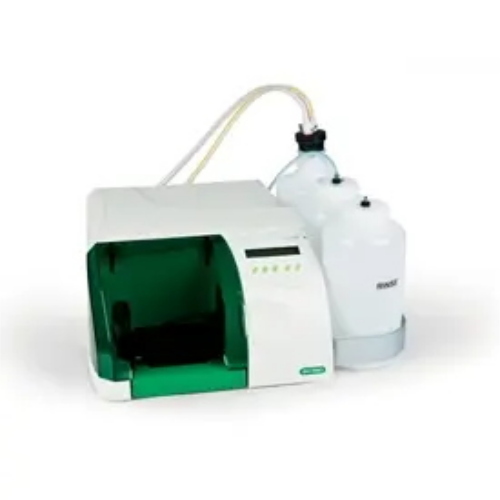

Model 1575 Immunowash Microplate Washer

Overview
The Model 1575 immunowash microplate washer offers complete needle position control to perform special wash routines and maximize wash efficiency.
This washer includes a wide choice of wash sequences to facilitate protocol creation and storage, and is compatible with 96-well microplates that have flat-, U-, or V-bottom wells.
Other functions of this versatile washer include:
Programmable needle positions (horizontal and vertical) with a precision of 0.1 mm for bottom washing, cross-wise aspiration, and overflow washing
Dispenser speed control
Plate-shaking option to help minimize bubbles and adherence of liquids to well sides
Waste-bottle sensor to detect high waste-liquid levels
Up to 75 programmable washing sequences for customized protocols
Easily removable 8- or 12-channel manifolds
Easily accessible manifold interior for cleaning and maintenance
Removable and autoclavable plate carrier
Standard aerosol protection cover
Integrated vacuum and dispensing pumps to ensure accurate and quiet washing and to eliminate the need for external pumps
Specifiche
Dimensions (W x D x H)
325 x 405 x 193 mm (12.8 x 16 x 7,6 in)
Weight
9.6 kg (21 lb)
Input voltage/frequency
110/220 V/50–60 Hz
Output
100 VA max.
Operating Conditions
15–30°C/15–85% RH
Performance :
- Precision
+5% RSD (0.9% NaCl W/v)
- Wash volume
50-3,000 µl per well
- Residual well volume
<2 µl
Storage capacity
Up to 75 kits
Soak time
- In plate mode
0–59 min
- In strip mode
0–9.9 sec
